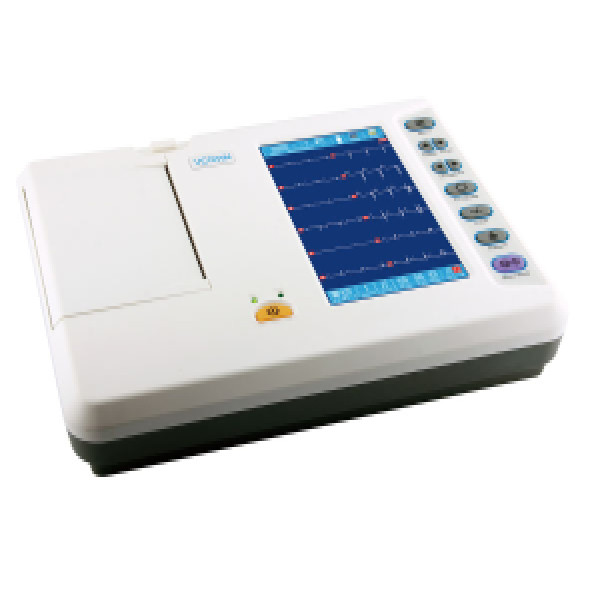

3Ray Portable 6-channel Digital ECG Machine
- A portable 6-channel ECG machine
● Working modes: Manual/Auto/Arrhythmia Analysis modes
● 112mm、3/6 channel format recording
● Built-in rechargeable Li-ion battery
● Adaptor 110-230V, 50/60Hz AC power supply
● Real-time ECG waveform, 250 patients save/replay
● Built-in USB/RS232 interface (ECGNET software Optional)
- Vcomin Portable 6 channel ECG Technical Specification
- Lead: standard 12 leads
- Input dynamic range: ±10Vpp
- Patient current leakage:<10μA
- Calibrating voltage: 1mV±2%
- Voltage tolerance: ≥±500mV
- The time constant: ≥3.2s
- Frequency response: 0.05~160Hz(-3db)
- Noise level:<15μVp-p
- Input circuit current: ≤0.05μA
- Sensitivity: 2.5, 5,10, 20mm/mV
- Inter-channel interference: ≤0.5mm
- Paper speed: 6.25,12.5, 25,50mm/s(±3%)
- Patient current leakage:<10μA
- Filter:
AC filter : 50Hz / 60Hz
EMG filter : 25Hz / 45Hz
Anti-drift filter : 0.15Hz(Adaptive)
- CMMR: ≥120dB (with AC filter)
- Sensitivity valve: ≤20μV
- Input impedance: ≥50MΩ
- Work modes: MAN、AUTO、ANALYSIS Modes
- Lead acquisition12bit/1000Hz(synchronously 12 leads)
- Input circuit: floating; protection circuit against defibrillator effect
- Display: 7 inch LCD
- Vcomin Portable 6 channel ECG Standard Configuration
- Patient cable 1 set
- Limb electrode 4 sets
- Chest electrodes 6 sets
- Grounding cable 1 set
- Paper axis 1 set
- Thermal paper 1 set
- Fuse 2 sets
- 3-cord power cord 1 set
- AC Adaptor 1 set
