Key Features Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 450 Mbps
802.11n (1024QAM) : up to 750 Mbps
802.11ac (1024QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 861 Mbps
802.11ax (5GHz) : up to 4804 Mbps Antenna External antenna x 3
Internal PCB antenna x 1 Button WPS Button, Reset Button, Power Switch, LED on/off Button Frequency 2.4 GHz / 5 GHz Wireless IPv6:Yes
MU-MIMO:Yes
Wi-Fi Encryption:WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID:Yes
Guest Network:Yes
Maximum Guest Network rule:2.4GHz x3, 5GHz x3
WPS:Yes
Wi-Fi MAC address filter:Yes
Maximum MAC filters:64
Wireless scheduler:Yes
Airtime fairness:Yes
RADIUS Server:Yes
Universal beamforming:Yes

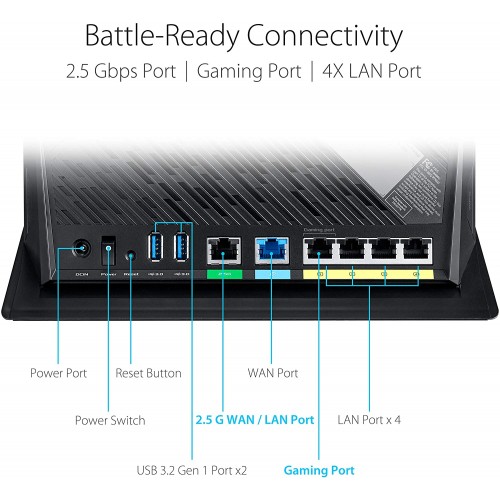

Explicit beamforming:Yes Interface RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1
USB 3.2 Gen 1 x 2 Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6 Others Product Segment AC3100 ultimate AC performance : 1000+2167 Mbps Operating System Support Transmit/Receive - 2.4 GHz 3 x 3 , 5 GHz 4 x 4
Processor - 1.8 GHz quad-core processor
Memory - 256 MB Flash, 1 GB DDRIII RAM Power Source Power Mode AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current Physical Dimension Color Black Manufacturer warranty Warranty 2 years

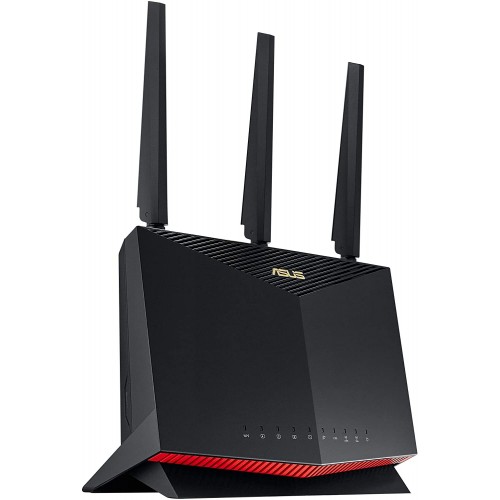

The ASUS RT-AX86U dual-band WiFi 6 router delivers ultrafast WiFi speeds up to 5700 Mbps, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience. RT-AX86U supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections. The Asus RT-AX86U comes with 2 years warranty.
