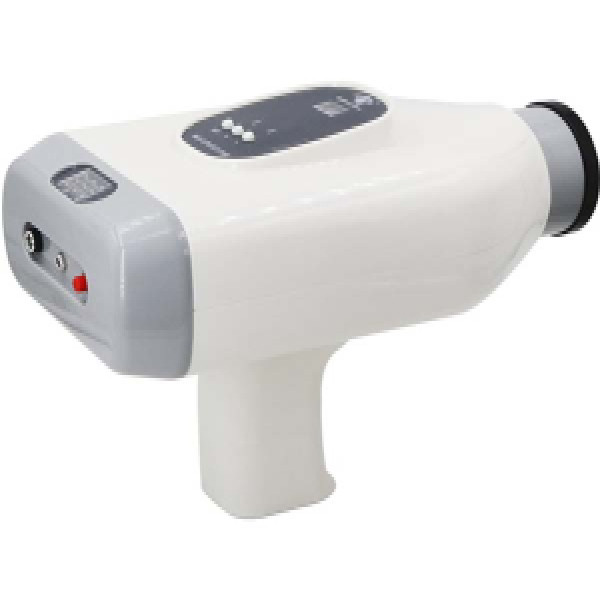

Mikasa HF100H Portable X-ray Machine
Model HF100H portable x-ray unit
Max.output power 2.0kW
Line voltage AC, single phase, 230V, 50/60Hz
Focal spot 1.2mm × 1.2mm
kV range 40kV-100kV (2kV step)
mA range 40mA@40-44kV, 30mA@46-60kV
25mA@62-80kV, 20mA@82-100kV
Timer 0.02-8.00sec
Memory storage 5 presets
Size・Weight L400×W286×H230mm(without skin guard) 17kg
Accessories Power cord/Hand-held exposure switch and cord
Remarks The product complies with the Japanese
High Quality Dental X-ray Unit With Stand Rack and Stool JYF-10D
1. Using the international advanced technology, high-efficiency, clear imaging, low radial, is only 1% of the national standard;
2. Light touched a button, controlled by a microcomputer, just press one button to select the exposure parameter, fast and accurate;
3. Developing in lightroom, the image in one minute, the doctor can diagnose conveniently from maximum;
4. Pneumatic up-down seat, more convenient and more comfortable;
5. It is for the use of the digital imaging system of the mouth.Model No: JYF-10D (stand type)Tube voltage60kVp
Tube current8mA
Focus size1.5mm
Total filtration2.5mm
exposure time:0.2 – 4s
