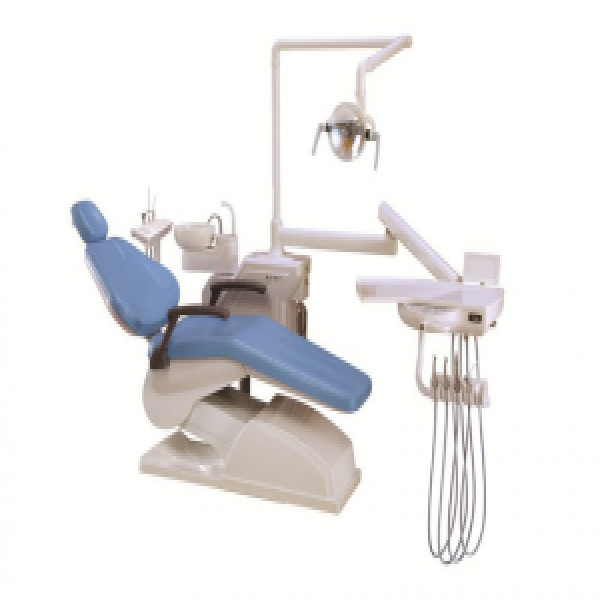

The HY-803 integrated dental unit adopts a high-quality polyether water hose and trachea which is resistant to acid, alkali, and corrosion. The dental chair is equipped with a MOTION DC motor, so it is stable and durable. 803 dental chair is equipped with infrared induction dual control reflective LED intraoral cameras. And 803 dental chair uses PU seamless leather fabric which is smooth and durable. The workbench is equipped with many high-quality components such as PVC pads, silicone keypads, and aluminum alloy self-locking arms.
Electrical parameters
Total power: 800VA
Input power: single-phase AC 220V±5%, 50Hz
Idle speed of high-speed gas turbine handpiece: ≥35X104r/min
Idle speed of low-speed gas turbine handpiece: ≥18X103r/min
Illumination of oral cold light: 10000LX~15000LX
Illumination of dental X-ray viewer: ≥2000LX
Weak suction saliva ejector valve: vacuum level ≥25KPa, suction flow ≥510ml/min
Strong suction saliva ejector valve: vacuum level≥25KPa, suction flow ≥750ml/min
Physical parameters
Overall size: 1880mm X 920mm X 2000mm
Dental chair base: 880mm X 600mm
Total weight: 220Kg
Maximum height of seat cushion from the ground: ≥800mm
Minimum height of seat cushion from the ground: ≤430mm
Maximum angle of seat cushion back: ≤10°
The range of backward angle: 105°~170°
The expanded range of the headrest: 0~ 120mm
The load capacity of the E60 dental unit: ≤ 1350N
The classification of medical instruments: class Ⅱ a
Noise:≤42dB
Main Operation Panel
Assistant Operation Panel

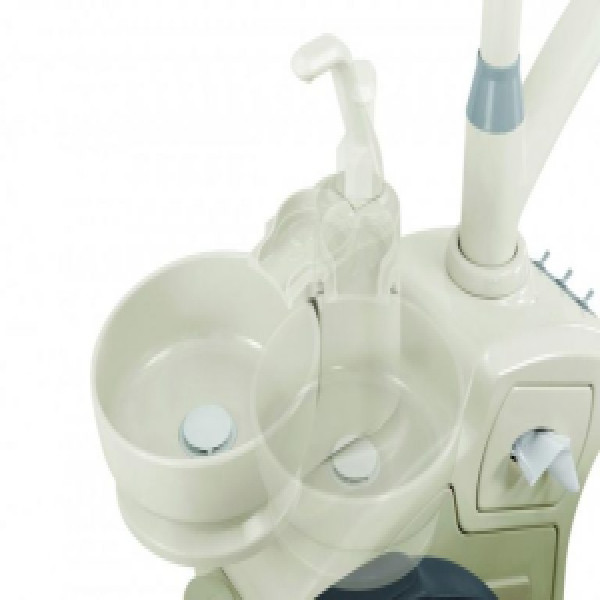

Spittoon
Water supply system
The water supply system can switch between pure water and tap water. It can directly connect to the hospital’s purified water system. In addition, the system has pipeline disinfection equipment to ensure water quality and safety. It is equipped with 2 water bottles to improve work efficiency.
Optional ground box
The ground box is movable and located on the side of the dental chair. The main box is made with a vacuum-formed technique, ensuring the box is corrosion resistant and will not fade. It also makes the assistant frame easy to operate with four hands, as well as easy to maintain.
An optional ground box can be installed on the dental chair, with the two being coordinated together to take up a small space. It is equipped with one switch for the control of water, gas and electricity, and will automatically drain to keep the air dry.
Standard/Optional
Standard configuration
24V DC Electrostatic Chair
Quantitative and constant temperature water supply control system of cuspidor bowl rinse and mouth rinse cup fill
assisted control system
Spittoon that can rotate 180 degrees
Strong/weak suction saliva ejector valve system
Three-way springe (cold/hot)
Handpiece water purification device
Integral tray, cup holder, and tissue box on dental unit
Dental X-ray viewer
Induction/manual intraoral cameras
Multifunctional pedal
Dentist seat
Comfort PU fabric cushion
High-quality anti-acid, alkali, and oil (polyether) corrosion water/trachea
Taiwanese brand TIMO Talon DC Motor
Optional configuration
Imported four-hole high-speed handpiece
Imported four-hole low-speed handpiece
Domestic scaler
Light Emitting Diode
Top-mounted instrument tray
Oral cavity endoscope
Switch of water, electricity, and gas
High-quality imported solenoid valve
LED surgical lamp
U.S. imported water/trachea
Induction/manual intraoral cameras
