Key Features | ||
---|---|---|
Data Rate | NAT Throughput: 800Mbps NAT(iMIX): 936Mbps NAT(DHCP): 878Mbps NAT(PPPoE): 665Mbps IPsec VPN Throughput (AES256): 373Mbps IPsec VPN Throughput (3DES): 180Mbps | |
Button | Reset Button | |
Wireless | Static/Dynamic IP, PPPoE/Russian PPPoE, PPTP/Russian PPTP, L2TP/Russian L2TP, Bigpond Cable | |
Interface | 1 Gigabit WAN port 3 Gigabit WAN/LAN ports 1 Gigabit LAN port | |
Network Standard | IEEE 802.3, IEEE802.3u, IEEE802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP | |
Encryption | Attack Defense: -TCP/UDP/ICMP Flood Defense -Block TCP Scan (Stealth FIN/Xmas/Null) -Block Ping from WAN Filtering: : MAC Filtering : URL/ Keywords Filtering ARP Inspection: -Sending GARP Packets -ARP Scanning by WAN/LAN -IP-MAC Binding Access Control: -Source/ Destination IP Based Access Control | |
Ports | 1 Gigabit WAN port 3 Gigabit WAN/LAN ports 1 Gigabit LAN port | |
Others | IPsec VPN: -100 IPsec VPN Tunnels -LAN-to-LAN, Client-to-LAN -Main, Aggressive Negotiation Mode -DES, 3DES, AES128, AES192, AES256 Encryption Algorithm -MD5, SHA1 Authentication Algorithm -IPsec NAT Traversal (NAT-T) -Dead Peer Detection (DPD) -Perfect Forward Secrecy (PFS) PPTP VPN: -50 PPTP VPN Tunnels -PPTP VPN Server/ Client -PPTP with MPPE Encryption L2TP VPN: -50 L2TP VPN Tunnels -L2TP VPN Server/Client -L2TP over IPsec VPN Pass-through: -IPsec (ESP), PPTP, L2TP | |
Operating System Support | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/ 8/ 8.1/ 10 MAC OS, NetWare, UNIX or Linux | |
Power Source | ||
Power Mode | Internal Universal Power Supply: AC 100 - 240V ~ 50/ 60Hz Input | |
Physical Dimension | ||
Dimension | 440x180x44 mm | |
Color | Black | |
Manufacturer warranty | ||
Warranty | 1 Year |

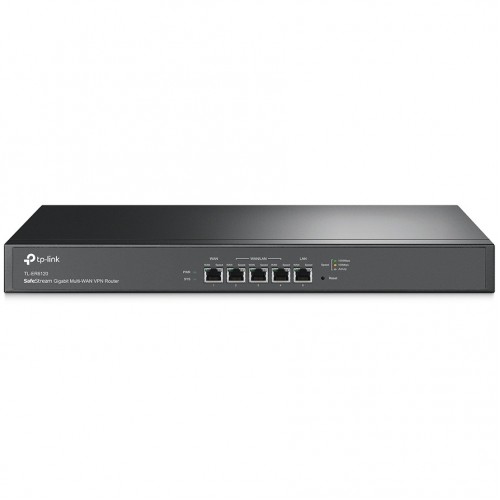

The TL-ER6120 SafeStream Gigabit Multi-WAN VPN Router from TP-Link boasts excellent data processing capabilities and an array of powerful functions, including IPsec/PPTP/L2TP VPN, Load Balance, Access Control, DoS Defense, and Bandwidth Control. The TL-ER6120 is ideal for small and medium businesses, along with hotels and other settings where a large number of users require a stable, secure connection. The TL-ER6120 supports pass-through traffic together with multiple VPN protocols including IPsec, PPTP, and L2TP in Client/Server mode. It also features built-in VPN engine hardware, allowing the router to support and manage up to 100 LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include DES/ 3DES/ AES128/ AES192/ AES256 encryption, MD5/ SHA1 authentication, and Main/Aggressive negotiation modes. The TL-ER6120 features 1 WAN port and 3 WAN/LAN ports, allowing one device to meet multiple requirements. Intelligent Load Balancing distributes data streams according to the bandwidth proportion of each WAN port to make the most of multi-line broadband. IP-based Bandwidth Control and Session Limit functions give network administrators the power to flexibly manage how their bandwidth is used. With a 64-bit network processor and 512MB DDR3 memory, TL-ER6120 is able to handle multiple tasks while maintaining excellent performance and greater reliability. Professional-standard lightning protection prevents electrical surges from penetrating your network equipment, instead of discharging them harmlessly into the Earth. Designed to withstand 4KV of electricity when well-grounded, this router ensures your network investments remain as safe as possible from the wrath of Mother Nature.
