US-WIM “Speed Weigh” In Motion Truck Scale 60,000 lb

Product ID : 116

Quick Description

Availability :
Stock Out
TK. 1,429,450

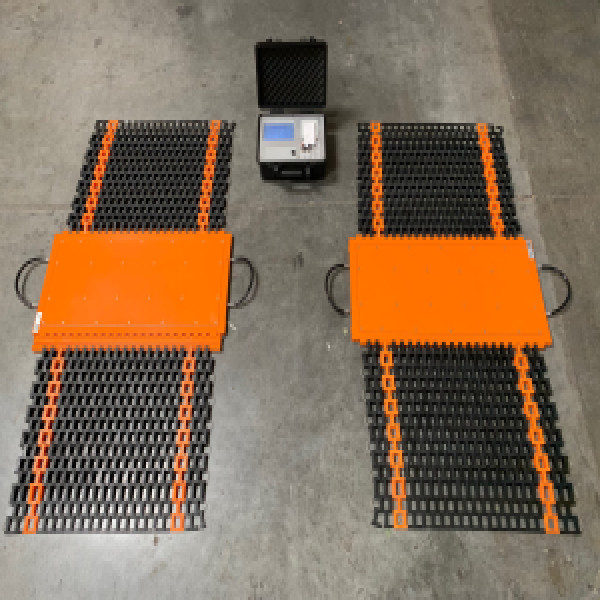

USA Measurements “Speed Weigh” heavy duty axle truck scale for high traffic use. Quickly drive across our in motion axle scale to get an accurate weight,each axle, and gross weight. The US-M6 weighing indicator can be automatically set-up to print a receipt once you drive across the scale. The US-M6 can assign truck ID numbers and store truck weighing information.  Our US-WIM3113 features a low profile 0.8″ Height with a 31″ x 13″ Pad size. Included is ramps and US-M6 indicator with carrying case. Great for portable applications. WATCH OUR VIDEO BELOW.



Printer Option



US-412-T Thermal Printer ( 3″ x 2″ ) (+$245.00)

Scoreboard



None

Data Collection Software



None

Indicator Stands



None

Wireless ( No Cables )



None

1x US-WIM "Speed Weigh" In Motion Truck Scale 60,000 lb

$10,995.00

Printer Option - US-412-T Thermal Printer ( 3″ x 2″ )

$245.00



DESCRIPTION

USA Measurements has designed an efficient, accurate, and easy to use system to weigh trucks. Traditional axle scales require the user to stop on each axle and have someone to operate the scale. This takes time and requires money to keep someone operating your scale. With the US-WIM3113 “Speed Weigh” this is a hands free operation. The user will drive straight across the scale with-out stopping. Our US-M6 indicator will automatically print a receipt with each axle weight and gross weight. This system is ideal for high traffic use, logistics company, avoiding DOT fines, shipping applications, mining applications, and much more.



USA Measurements US-M6 digital weighing indicator is commonly used with our weighing in motion (WIM) axle scales. Our US-M6 indicator allows users to store data, track different truck weights, assign ID numbers, and export data via excel, text, or database file output. Our advance indicator allows any user to make the weighing operation easier, quicker, and run efficiently. The US-M6 indicator operates on windows CE 6.0 to efficiently offer users an easy to use software. The US-M6 includes our pelican case to store the stainless steel indicator. Additionally this unit is very easy to calibrate, has a 40 hour battery life, includes RS232 output, and USB output.



Features:



Aluminum alloy steel material

Pad Size: 31.5″” x 13.78 x 0.87″

Ramp size: 31.5″ x 59″

60,000 lb Capacity for 2 pads

Portable with Carrying Handles

Sealed and protected for normal working environment

Load cell based with high Weighing In-Motion accuracy

OIML Standard

Static Weighing Mode

Wide pads to weigh single or dual tires

120% overload protection

Built-in Cable protector

Built-in anti-electromagnetic interference to make sure weighing result will not be influenced

Built-in auto compensation system to compensate weighing error on double joint axle or triple joint axle

1 Year Manufacturer Warranty

Non-NTEP (Not Legal for Trade)

US-WIM Axle Scale Brochure





US-M6 Indicator Features:



Static weighing Mode

In Motion Weighing Mode

Receipt Printer (Single Ply Paper)

High Definition Touch Screen

40 Hour Battery Life

Stores Records for Weights

Windows CE 6.0 System

RS232 Port and USB 2.0 Output

Excel file, text file, or database file output





US-M6 Indicator Specifications:



Full-scale temperature coefficient: 5ppm/°C

Sampling speed: 200times/sec

The speed of display renewal: 12.5times/sec

System non-linearity <0.01%

Impulse source of sensor: DC 5V±2%

Operating temperature range: 0°C–40°C

Power supply sink (without the sensor): 70mA

No printing and no back lightin, 1000mA (printing)

US-M6 Smart Indicator Brochure

US-M6 Indicator Manual
